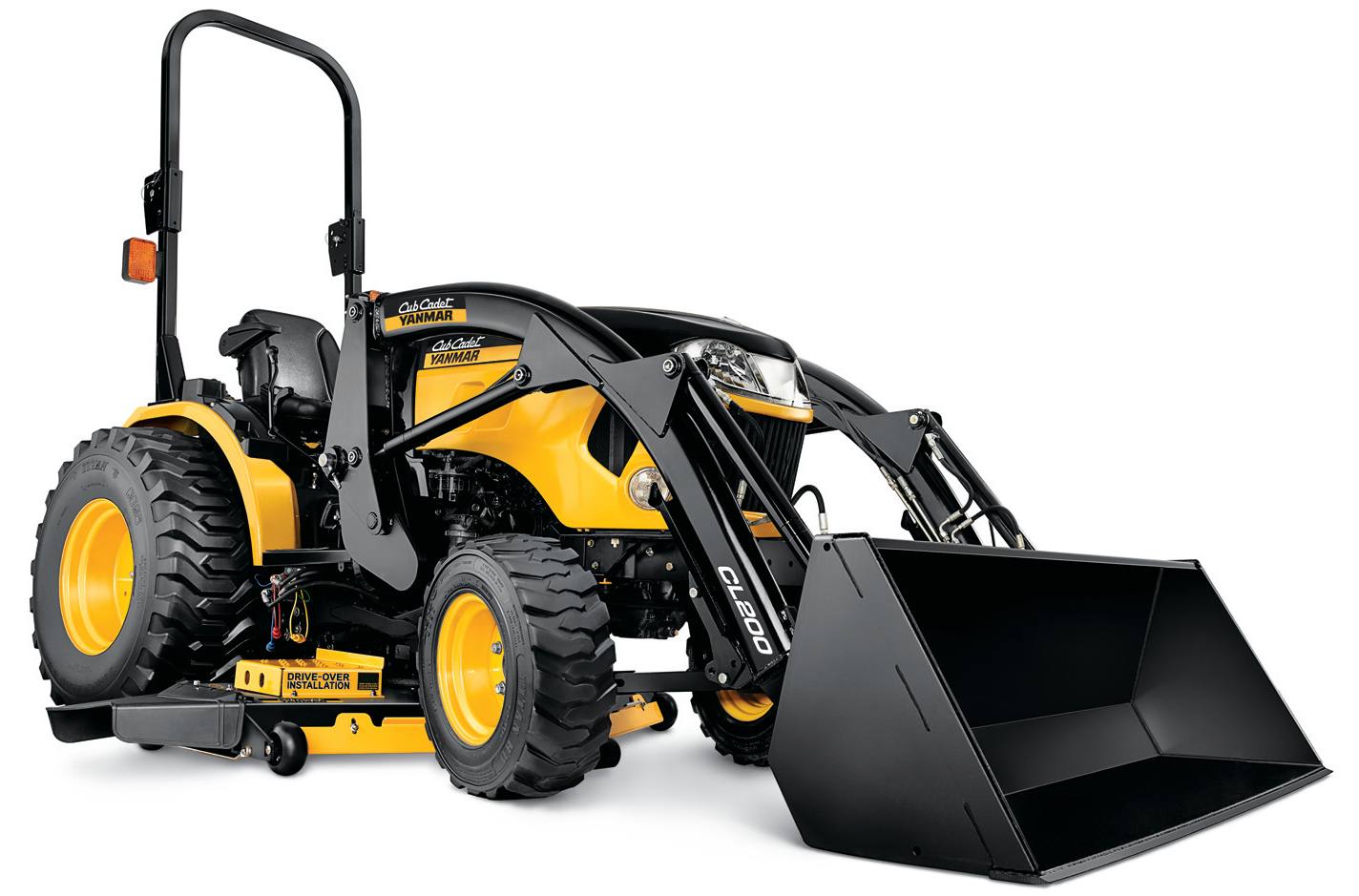

2010 Cub Cadet SX3100
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Powertrain
    • Gross HP: 31.2 HP diesel
    • Net HP: 30.0 @2,500 RPM
    • PTO HP (Hyd): 23.5 @2,500 RPM
    • Rated RPM: 2,500 RPM
    • Bore and Stroke: 88mm x 90mm
    • Total Displacement: 100.2 cu. in.
    • Ignition Type: Direct injection
    • Air Cleaner: Dual Dry
    • Lubrication: Full pressure
    • Cooling System: Liquid cooled
    • Number of Cylinders: 3
    Capacities
    • Fuel Tank Capacity: 7.1 gal.
    • Cooling System Capacity: 4.1 qt.
    • Engine Oil Capacity: 3.6 qt.
    • Transmission Case Capacity: 4.6 gal.
    Drivetrain
    • Transmission Type: Hydrostatic
    • Rear Differential Lock: Foot pedal operation
    • 2WD/4WD Engagement: Selectable
    • Final Drive: Bevel gear
    • Brake: Wet disc
    • Number of Ranges: 2
    • PTO Type: Independent
    • Rear PTO/RPM (standard): 540/2,495
    • Mid PTO/RPM (standard): 2,100/2,479
    Maximum Traveling Speed
    • Forward/Reverse High: 14.8 mph
    • Forward/Reverse Low: 5.1 mph
    Hydraulics
    • Pump: Trochoid (HST & st. & PTO) + Gear (impl.)
    • Maximum Pump Capacity: 10.1 GPM at 2,500 RPM
    • Pump Capacity (Main): 4.8 GPM at 2,500 RPM
    • Pump Capacity (Steering): 5.3 GPM at 2,500 RPM
    • 3-Point Hitch: Limited Category 1
    • Hydraulic Control System: Position control
    • 3-Point Hitch Lift Capacity @24" Behind: 1,180 lbs
    • Loader Control Valve: Standard
    • Power Steering: Fully hydraulic
    Dimensions
    • Wheelbase: 65.2"
    • Width: 55.6" (w/R4)
    • Overall Length w/o 3-Point Hitch: 109"
    • Ground Clearance: 10.6"
    • Weight w/ROPS (approx.): 1,973 lbs
    Tire size
    • Front Industrial/Turf: 23" x 8.5"-12" / 24" x 8.5"-14"
    • Rear Industrial/Turf: 14" x 17.5" / 36" x 14"-15"
    Residential/Commercial Warranty
    • Tractor: The Sx 3100 Compact Tractor has a 2-year or 2,000 hour limited warranty
    • Engine/Drive Train: 3-year or 2,000 hour limited warranty
    • Attachments: 1-year limited warranty
    NOTES:

    See your local Independent Dealer for warranty details
    The Sx3100 is available with industrial or turf tires


    Specifications

    Engine
    Horsepower 30.0 @2,500 RPM
    PTO HP 23.5 @2,500 RPM
    Rated RPM 2,500 RPM
    Bore and Stroke 88mm x 90mm
    Specifications
    Wheelbase 65.2"
    Width 55.6" (w/R4)
    Weight 1,973 lbs
    Ground Clearance 10.6"
    Tire Size Front Industrial/Turf: 23" x 8.5"-12" / 24" x 8.5"-14", Rear Industrial/Turf: 14" x 17.5" / 36" x 14"-15"
    General
    Fuel Capacity 7.1 gal.
    Transmission Hydrostatic
    Brakes Wet disc
    Hydraulics Open center

    Compare Models

    		 Print








    Year 2010
    Manufacturer Cub Cadet
    Model SX3100
    Style Compact
    Engine
    Engine Manufacturer
    Engine Type
    Horsepower 30.0 @2,500 RPM
    PTO HP 23.5 @2,500 RPM
    Rated RPM 2,500 RPM
    Bore and Stroke 88mm x 90mm
    General
    Fuel System
    Fuel Capacity 7.1 gal.
    Transmission Hydrostatic
    Brakes Wet disc
    Hydraulics Open center
    Drive Type
    Specifications
    Wheelbase 65.2"
    Height
    Width 55.6" (w/R4)
    Weight 1,973 lbs
    Ground Clearance 10.6"
    Tire Size Front Industrial/Turf: 23" x 8.5"-12" / 24" x 8.5"-14", Rear Industrial/Turf: 14" x 17.5" / 36" x 14"-15"
