2010 Cub Cadet Sc2450 Sub Compact Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form

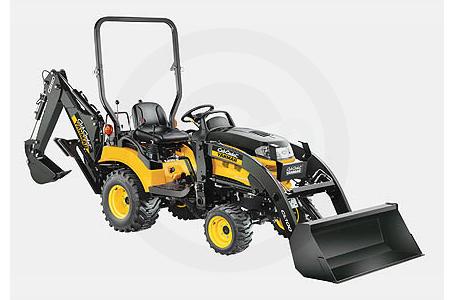

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 24 Gross HP, 3-Cylinder Liquid Cooled Diesel Engine
  • Coming Fall of 2009
  • Category I, 3-Point Hitch w/Positive Position Control
  • Shift-On-The-Go® Range Control
  • 540 Rear / 2100 Mid Independent PTO
  • Standard Loader and Backhoe
  • Sc2450 Sub Compact Tractor Exclusive Features
  • Sc2400 Sub Compact Tractor Attachments
  • Terminology - Sub Compact Tractors
Powertrain
  • Gross HP: 24 HP diesel
  • Net HP: 20.4 @ 3,300 RPM
  • PTO HP (Hyd): 16.5 @ 3,200 RPM
  • Number of Cylinders: 3
  • Bore and Stroke: 72mm x 74mm
  • Total Displacement: 55.1 cu. in.
  • Ignition Type: Indirect injection
  • Lubrication: Full pressure
  • Oil Filter: Spin-on/full flow
  • Cooling System: Liquid cooled
  • Air Cleaner: 4" single dry
  • Preheat System: Glow plug
  • Alternator: 40 amp.
Capacities
  • Fuel Tank Capacity: 5.8 gal.
  • Cooling System Capacity: 3.4 qt.
  • Engine Oil Capacity: 2.5 qt.
  • Transmission Case Capacity: 2.0 gal.
Drivetrain
  • Transmission Type: Hydrostatic
  • Number of Ranges: 2 Shift-On-The-Go®
  • 2WD/4WD Engagement: Selectable
  • Cruise Control: Selectable
  • Final Drive: Bevel gear
  • PTO Type: Independent
  • Mid PTO/RPM (standard): 2,100/3,338
  • Rear PTO/RPM (standard): 540/3,111
  • Brake: Wet disc
Maximum Traveling Speed
  • Forward Low: 6.0 mph
  • Forward High: 9.3 mph
  • Reverse Low: 3.6 mph
  • Reverse High: 5.6 mph
Hydraulics
  • Type: Open center
  • Pump: Trochoid (hst) / Gear (steering & implement)
  • Maximum Pump Capacity: 6.9 GPM at 3,200 RPM
  • Steering/SCV/3-Point Hitch: 3.5 GPM at 3,200 RPM
  • Transmission/Hydraulic PTO: 3.4 GPM at 3,200 RPM
  • 3-Point Hitch: Limited Category 1
  • 3-Point Hitch Lift Capacity @24" :
  • Behind: 661 lbs
Dimensions
  • Loader Control Valve: Optional
  • Power Steering: Fully hydraulic
  • Wheelbase: 55.1"
  • Width: 44.5" (w/R4)
  • Overall Length w/Loader and Backhoe: 172.5"
  • Ground Clearance: 7.5" (w/R4)
  • Weight w/ROPS & Fluids: 2,525 lbs
Tire Size
  • Front Industrial/Turf: 18" x 8.5"-10"
  • Rear Industrial/Turf: 26" x 12"-12"
Residential/Commercial Warranty
  • Tractor: The Sc 2450 Sub Compact Tractor has a 2-year or 2,000 hour limited warranty
  • Engine/Drive Train: 3-year or 2,000 hour limited warranty
  • Attachments: 1-year limited warranty
