$35,199.00

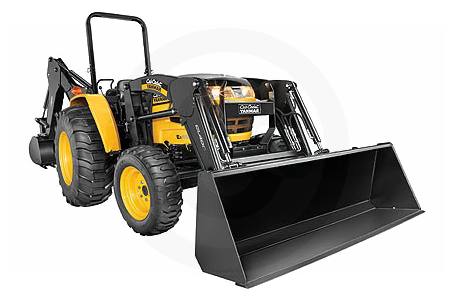

2010 Cub Cadet Ex450 TLB
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 45 Gross hp, 4-Cylinder Liquid Cooled Diesel Engine
  • Category I, 3-Point Hitch w/Position Control
  • 9 Fwd & 9 Rev Synchronized Shuttle Transmission
  • 540 Rear Continuous Live PTO
Specifications
  • Gross HP: 45 at 2700 rpm (diesel)
  • PTO HP (Hyd): 37.5 at 2700 rpm
  • Rated RPM: 2700 rpm
  • Bore and Stroke: 88mm x 90mm
  • Total Displacement: 133.6 cu. in.
  • Ignition Type: Direct injection
  • Air Cleaner: Dual dry
  • Lubrication: Full pressure
  • Cooling System: Liquid cooled
  • Number of Cylinders: 4
  • Transmission Type: 9 fwd & 9 rev Synchronized Shuttle
  • Clutch: Dual stage dry
  • Rear Differential Lock: Foot pedal operation
  • 2WD / 4WD Engagement: Selectable
  • Final Drive: Bevel gear
  • Brake: Wet disc
  • Number of Ranges: 3
  • PTO Type: Continuous live
  • Rear PTO / RPM: 540 / 2700
  • Type: Open center
  • Pump: Gear
  • Max. Pump Capacity (rpm): 13.0 gal./min. at 2700
  • Pump Capacity (Main): 8.5 gal./min. at 2701
  • Pump Capacity (Steering): 4.5 gal./min. at 2702
  • 3-Point Hitch: Category 1
  • Control System: Position control
  • 3-Point Hitch Lift Capacity at 24: 2,464 lbs.
  • Loader Control Valve: Optional
  • Power Steering: Fully hydraulic
  • Wheelbase: 72 in.
  • Width: 61 in.
  • Overall Length w/o 3-pt Hitch: 127 in.
  • Ground Clearance: 13.4 in.
  • Weight w/ROPS: 5825 lbs.
  • Front Industrial Tire Size: 10 - 16.5 in.
  • Rear Industrial Tire Size: 17.5L - 24 in.
  • Tractor Warranty: 2-year or 2,000 hour limited
  • Engine / Drive Train Warranty: 3-year or 2,000 hour limited
Attachments
  • Curved boom backoe 8.5 ft.
  • 72 in. box scraper
  • 74 in. rotary tiller
  • 84 in. landscape rake
  • 84 in. rear blade
  • 72 in. rotary cutter
  • 72 in. finishing mower
  • Grille guard
  • Ag tires
  • Industrial tires
  • Turf tires
  • Galaxy tires

Specifications

Engine
Engine Manufacturer Yanmar®
Engine Type 4 cyl.; 133.6 cu. in. Displacement; Liquid Cooled Diesel
Horsepower 45 at 2700 rpm (diesel)
PTO HP PTO HP (Hyd): 37.5 at 2700 rpm; PTO Type: Continuous live
Rated RPM 2700 rpm
Bore and Stroke 88mm x 90mm
Specifications
Wheelbase 72 in.
Width 61 in.
Weight 5825 lbs.
Ground Clearance 13.4 in.
Tire Size Front Industrial Tire Size: 10 - 16.5 in.; Rear Industrial Tire Size: 17.5L - 24 in.
General
Fuel System Diesel
Transmission 9 fwd & 9 rev Synchronized Shuttle
Brakes Wet disc
Hydraulics Open center
Drive Type Bevel gear

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model Ex450 TLB
Style Compact
MSRP* $35,199.00
Engine
Engine Manufacturer Yanmar®
Engine Type 4 cyl.; 133.6 cu. in. Displacement; Liquid Cooled Diesel
Horsepower 45 at 2700 rpm (diesel)
PTO HP PTO HP (Hyd): 37.5 at 2700 rpm; PTO Type: Continuous live
Rated RPM 2700 rpm
Bore and Stroke 88mm x 90mm
General
Fuel System Diesel
Fuel Capacity
Transmission 9 fwd & 9 rev Synchronized Shuttle
Brakes Wet disc
Hydraulics Open center
Drive Type Bevel gear
Specifications
Wheelbase 72 in.
Height
Width 61 in.
Weight 5825 lbs.
Ground Clearance 13.4 in.
Tire Size Front Industrial Tire Size: 10 - 16.5 in.; Rear Industrial Tire Size: 17.5L - 24 in.
