$15,599.00

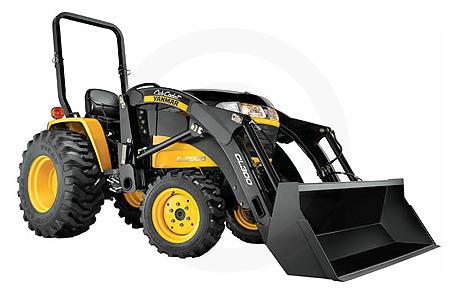

2010 Cub Cadet Ex2900
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 28.7 Gross hp, 3-Cylinder Liquid Cooled Diesel Engine
  • Category I, 3-Point Hitch w/Positive Position Control
  • Selectable 4WD Engagement
  • 540 Rear / 2100 Mid Live Continuous PTO
Specifications
  • Gross HP: 28.7 hp Diesel
  • PTO HP (Hyd): 22.7 at 2600
  • Rated RPM: 2600
  • Bore and Stroke: 88mm x 90mm
  • Total Displacement: 100.1 cu. in.
  • Ignition Type: Direct Injection
  • Air Cleaner: Dual dry
  • Lubric ation: Full Pressure
  • Cooling System: Liquid Cooled
  • Radiator Fan: 7-Fin
  • Number of Cylinders: 3
  • Type: Open Center
  • Pump: Gear
  • Max. Pump Capacity: 9.9 gal../min. at 2600
  • Attachment Pump: 5.6 gal../min. at 2600
  • Power Steering: 4.3 gal../min. at 2600
  • 3-point Hitch Category: Category 1
  • Hydraulic Control System: Position Control
  • 3-point Lift Cap. at 24: 1,100 lbs.
  • Loader Control Valve: Standard
  • Steering: Fully Hydraulic
  • Fuel Tank Capacity: 6.3 gal.
  • Cooling System Capacity: 1.7 gal.
  • Engine Oil Capacity: 4.2 qt.
  • Transmission Case Capacity: 5.4 gal.
  • Wheelbase: 61 in.
  • Width: 59.1 in.
  • Overall Length w/3-Point Arms: 115 in.
  • Ground Clearance: 10 in.
  • Weight (with ROPS): 2,540 lbs.
  • Transmission Option: Hydrostatic
  • Clutch: Dry Single
  • Rear Differential Lock: Standard
  • 4WD Engagement: Selectable
  • Final Drive: Bevel Gear
  • Brake: Wet multi-plates
  • Number of Ranges: 3-range
  • PTO Type: Live Continuous
  • Rear PTO / RPM: 540 / 2592
  • Mid PTO / RPM: 2100 / 2630
  • Forward/Reverse High Speed: 11.7 mph (w/industrial tires)
  • Forward/Reverse Med. Speed: 6.1 mph (w/industrial tires)
  • Forward/Reverse Low Speed: 3.5 mph (w/industrial tires)
  • Front Industrial Tire Size: 25 in. x 8.5 - 14 in.
  • Rear Industrial Tire Size: 15 - 19.5 in.
  • Front Ag Tire Size: 7 - 14 in.
  • Rear Ag Tire Size: 11.24 - 24 in.
  • Front Turf Tire Size: 25 in. x 8.5 - 14 in.
  • Rear Turf Tire Size: 13.6 - 16 in.
  • Tractor Warranty: 2-Year or 2,000 Hour Limited
  • Engine & Drive Train Warranty: 3-Year or 2,000 Hour Limited
Attachments
  • Curved-boom loader
  • Curved-boom backhoe
  • Mid-mount deck
  • Rear-mount mower
  • Tiller
  • Box scraper
  • Rear blade
  • Landscape rake
  • Rotary cutter
  • Post hole digger
  • Ballast box
  • Grille guard
  • Industrial tires
  • Ag tires
  • Turf tires
  • 72 in. front blade
  • Hard cab assembly
  • Worklights for hard cab
  • Strobe light (bolt-on) for hard cab
  • Side mirror kit for hard cab
  • Dome light for hard cab
  • Switch panel for hard cab
  • Back up alarm for hard cab
  • Rotating beacon for hard cab
  • Strobe light (magnetic base) for hard cab
  • Rear view mirror for hard cab
  • Deluxe overhead console for hard cab
  • Universal stero mount for hard cab
  • Heater for hard cab
NOTES:

Priced with Industrial, Ag or Turf Tires


Specifications

Engine
Engine Manufacturer Yanmar®
Engine Type 3 cyl.; 100.1 cu. in. Displacement; Liquid Cooled Diesel
Horsepower 28.7 hp
PTO HP 22.7 at 2600
Rated RPM 2600
Bore and Stroke 88mm x 90mm
Specifications
Wheelbase 61 in.
Width 59.1 in.
Weight 2,540 lbs.
Ground Clearance 10 in.
Tire Size Front Industrial: 25 in. x 8.5 - 14 in.; Rear Industrial: 15 - 19.5 in.; Front Ag: 7 - 14 in.; Rear Ag: 11.24 - 24 in.; Front Turf: 25 in. x 8.5 - 14 in.; Rear Turf: 13.6 - 16 in.
General
Fuel System Diesel
Fuel Capacity 6.3 gal.
Transmission Hydrostatic
Brakes Wet multi-plates
Hydraulics Open Center
Drive Type Bevel Gear

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model Ex2900
Style Compact
MSRP* $15,599.00
Engine
Engine Manufacturer Yanmar®
Engine Type 3 cyl.; 100.1 cu. in. Displacement; Liquid Cooled Diesel
Horsepower 28.7 hp
PTO HP 22.7 at 2600
Rated RPM 2600
Bore and Stroke 88mm x 90mm
General
Fuel System Diesel
Fuel Capacity 6.3 gal.
Transmission Hydrostatic
Brakes Wet multi-plates
Hydraulics Open Center
Drive Type Bevel Gear
Specifications
Wheelbase 61 in.
Height
Width 59.1 in.
Weight 2,540 lbs.
Ground Clearance 10 in.
Tire Size Front Industrial: 25 in. x 8.5 - 14 in.; Rear Industrial: 15 - 19.5 in.; Front Ag: 7 - 14 in.; Rear Ag: 11.24 - 24 in.; Front Turf: 25 in. x 8.5 - 14 in.; Rear Turf: 13.6 - 16 in.
