$17,189.00

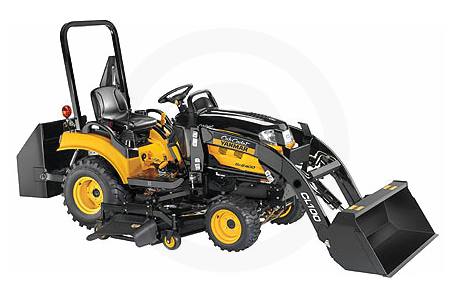

2010 Cub Cadet Sc2400 TLD
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 24 Gross hp, 3-Cylinder Liquid Cooled Diesel Engine
  • Category I, 3-Point Hitch w/Positive Position Control
  • Shift-On-The-Go® Range Control
  • 540 Rear / 2100 Mid Independent PTO
Specifications
  • Gross HP: 24 hp Diesel
  • PTO HP (Hyd): 16.5 at 3300
  • Rated RPM: 3300
  • Number of Cylinders: 3
  • Bore and Stroke: 72mm x 74mm
  • Total Displacement: 55.1 cu. in.
  • Ignition Type: Indirect
  • Lubrication: Full Pressure
  • Oil Filter: Spin-on/Full Flow
  • Air Cleaner: 4 in. Single
  • Preheat System: Glow Plug
  • Alternator: 40 amp
  • Exhaust: Right Side, Pointing Down
  • Type: Open Center
  • Pump: Gear/Trochoid
  • Steering/SCV/3-Point: 3.5 gal./min. at 3300
  • Transmission Hydraulic PTO: 3.5 gal./min. at 3300
  • Max. Pump Capacity (rpm): 7.0 gal./min. at 3300
  • 3-Point Hitch: Category 1
  • 3-Point Hitch Lift Capacity at 24: 661 lbs.
  • Fuel Tank Capacity: 5.8 gal
  • Cooling System Capacity: 3.4 qt.
  • Engine Oil Capacity: 2.5 qt.
  • Transmission Case Capacity: 2.0 qt.
  • Wheelbase: 55.1 in.
  • Width: 44.5 in. (w/R4)
  • Overall Length w/3-Point Arms: 95.5 in.
  • Ground Clearance: 7.5 in. (w/R4)
  • Weight (with ROPS) & Fluids: 1,961 lbs. (Turf) / 2,015 lbs. (Ind.).
  • Transmission Option: Hydrostatic
  • Number of Ranges: 2 Shift-On-The-Go®
  • 4WD Operations: 2WD & 4WD Selectable
  • Cruise Control: Selectable
  • Rear Differential Lock: Foot Pedal Control
  • PTO Type: Independent
  • Mid PTO / RPM: 2100 / 3338
  • Rear PTO / RPM: 540 / 3111
  • Brake: Wet Disc
  • Forward/Reverse High Speed: 9.3 mph / 5.8 mph
  • Forward/Reverse Low Speed: 6.0 mph / 3.6 mph
  • Front Industrial Tire Size: 18 in. x 8.5 - 10 in.
  • Rear Industrial Tire Size: 26 in. x 12.00 - 12 in.
  • Front Turf Tire Size: 18 in. x 8.5 - 10 in.
  • Rear Turf Tire Size: 26 in. x 12.00 - 12 in.
  • Tractor Warranty: 2-Year or 2,000 Hour Limited
  • Engine & Drive Train Warranty: 3-Year or 2,000 Hour Limited
Attachments
  • Rear-mount mower
  • Tiller
  • Box scraper
  • Rear blade
  • Ballast box
  • Grille guard
  • Grass collection system
  • Front weight bracket
  • Front suitcase weights
  • Turf tires
  • Industrial tires
  • Bar tires
  • 60 in. Front blade w/hyd. Angle kit
  • 45 in. Snowblower
  • Hydraulic chute rotation kit
  • Hard cab assembly
  • Worklights for hard cab
  • Strobe light (bolt-on) for hard cab
  • Side mirror kit for hard cab
  • Dome light for hard cab
  • Switch panel for hard cab
  • Back up alarm for hard cab
  • Rotating beacon for hard cab
  • Strobe light (magnetic base) for hard cab
  • Rear view mirror for hard cab
  • Deluxe overhead console for hard cab
  • Universal stero mount for hard cab
  • Heater for hard cab

Specifications

Engine
Engine Manufacturer Yanmar®
Engine Type 3 cyl.; 55.1 cu. in. Displacement; Diesel
Horsepower 24 hp
PTO HP 16.5 at 3300
Rated RPM 3300
Bore and Stroke 72mm x 74mm
Specifications
Wheelbase 55.1 in.
Width 44.5 in. (w/R4)
Weight 1,961 lbs. (Turf) / 2,015 lbs. (Ind.).
Ground Clearance 7.5 in. (w/R4)
Tire Size Front Industrial Tire Size: 18 in. x 8.5 in.-10 in.; Rear Industrial Tire Size: 26 in. x 12.00 in.-12 in.; Front Turf Tire Size: 18 in. x 8.5 in.-10 in.; Rear Turf Tire Size: 26 in. x 12.00 in.-12 in.
General
Fuel System Diesel
Fuel Capacity 5.8 gal
Transmission Hydrostatic
Brakes Wet Disc
Hydraulics Open Center

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model Sc2400 TLD
Style Compact
MSRP* $16,299.00
Engine
Engine Manufacturer Yanmar®
Engine Type 3 cyl.; 55.1 cu. in. Displacement; Diesel
Horsepower 24 hp
PTO HP 16.5 at 3300
Rated RPM 3300
Bore and Stroke 72mm x 74mm
General
Fuel System Diesel
Fuel Capacity 5.8 gal
Transmission Hydrostatic
Brakes Wet Disc
Hydraulics Open Center
Drive Type
Specifications
Wheelbase 55.1 in.
Height
Width 44.5 in. (w/R4)
Weight 1,961 lbs. (Turf) / 2,015 lbs. (Ind.).
Ground Clearance 7.5 in. (w/R4)
Tire Size Front Industrial Tire Size: 18 in. x 8.5 in.-10 in.; Rear Industrial Tire Size: 26 in. x 12.00 in.-12 in.; Front Turf Tire Size: 18 in. x 8.5 in.-10 in.; Rear Turf Tire Size: 26 in. x 12.00 in.-12 in.
